Three-View Drawings of Tilt-Duct VTOL UAV

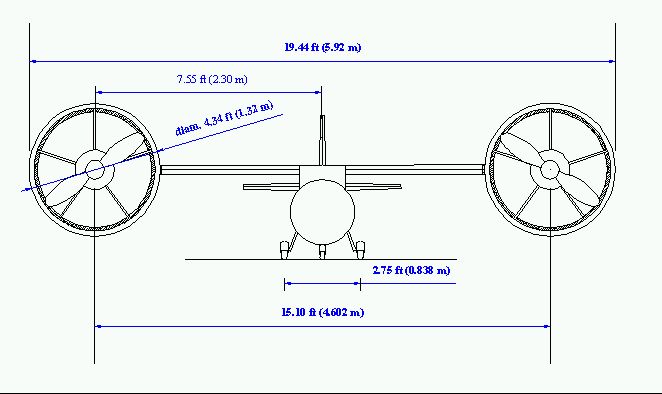

Front View in Forward Flight Mode Front View in Hover Flight Mode

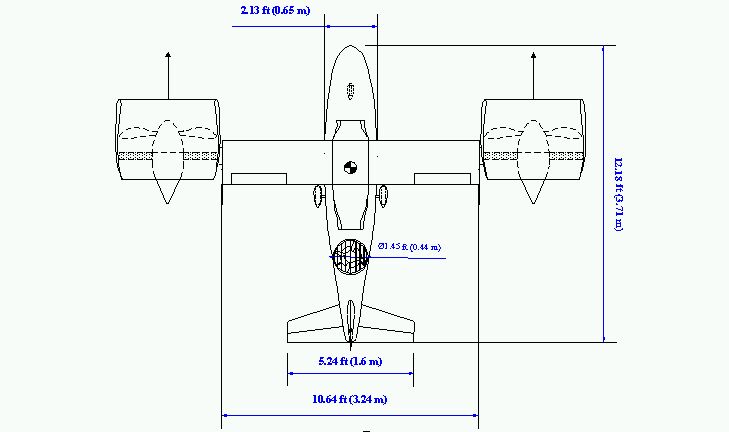

Top View in Forward Flight Mode Top View in Hover Flight Mode
Side View in Hover Flight Mode

All drawings are made by Ms. Armutcuoglu.
